Material Type: Pre-painted Steel Sheet
Material Thickness: 0.2-0.7mm
Yield Stress: 230-550MPa
Max. Forming Speed: 8-12 M/min
Roller Material: 45# Steel With Chrome Treatment
Driven Mode: Chain Transmission
Main Motor Power: 7.5kw
Hydraulic Motor Power: 5.5kw
Brand Of Converter: Schneider
Verpakung: nude package
Produktivität: 30 sets per month
Ort Von Zukunft: cangzhou
Versorgungsmaterial-Fähigkeit: 30 sets per month
Zertifikate : CE ISO9001
Double Layer Roofing Panel Roll Forming Machine

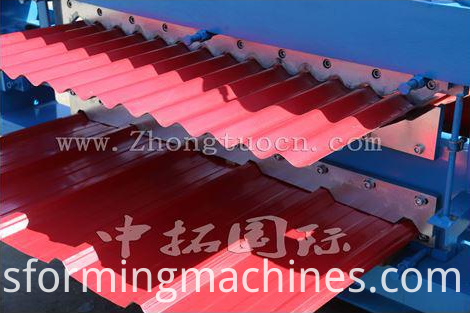

As a professional manufacturer,we can make the Roofing Panel Roll Forming Machine by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed tile making machine, double layer roll forming machine and so on.Here is some profile drawings for you reference.

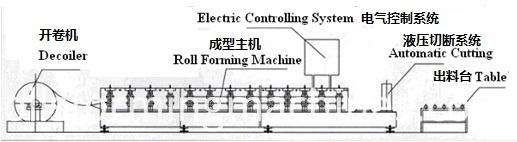

Main features of each part

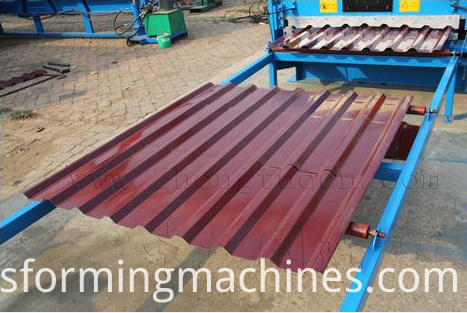

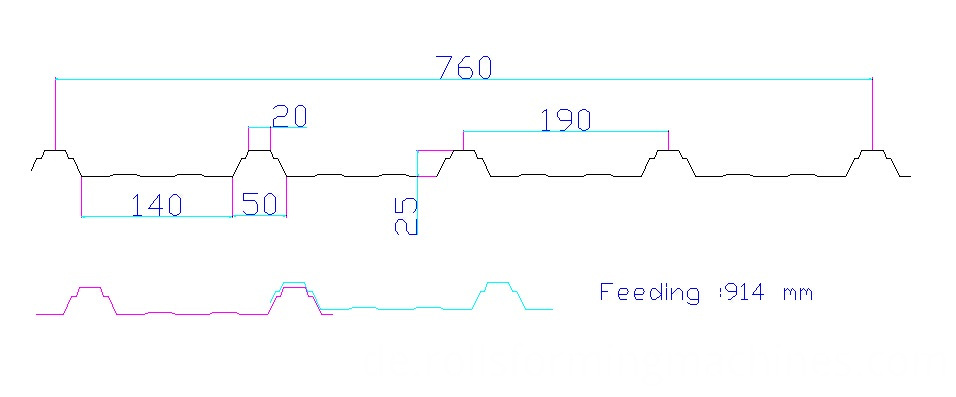

Drawing of tile:
Processing material: colored steel plate, galvanized plate.
Material thickness: 0.3- 0.8 mm
Material hardness: 195 mpa---350 mpa
Formed width:1020 mm
Forming speed: 12 m/min
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Loading capacity:5 T
Uncoiling width:1200 mm
Inner diameter: 450-550 mm.
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

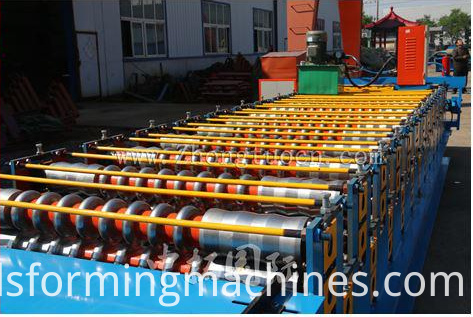

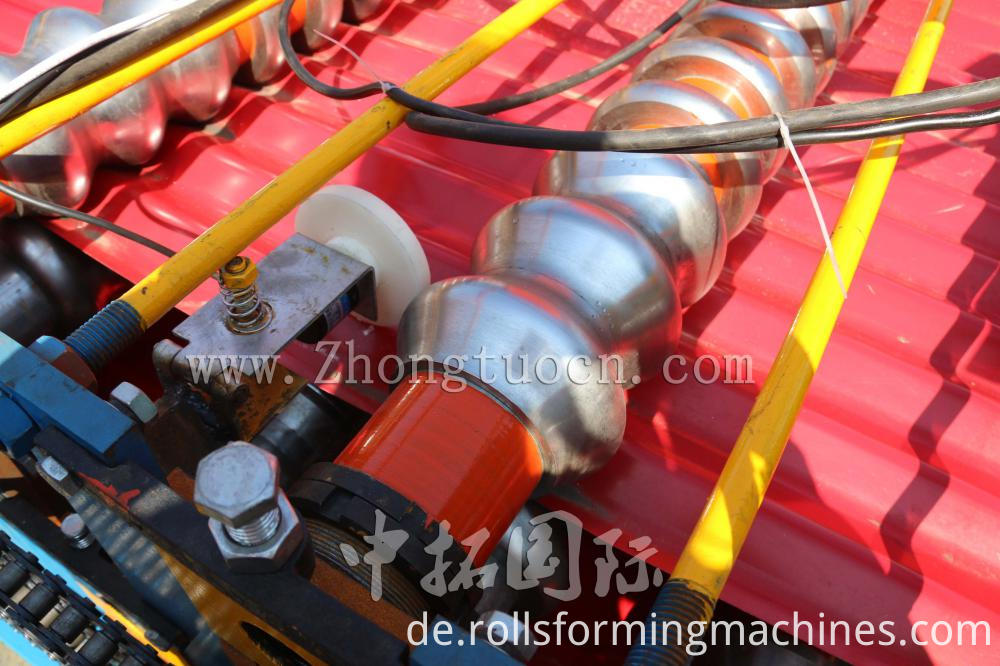

Main Roll Forming System
Size of the main part: about
8500 х 1650 х 1500
Weight of main part: 5. 5 tons
Voltage: 380 V/50 HZ 3 Phase or as your required
Roller fixer : middle plate
Frame : 350 mm H beam steel welded
Drive mode: case of differential
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 15 rollers
Main power: 7.5 kw
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched

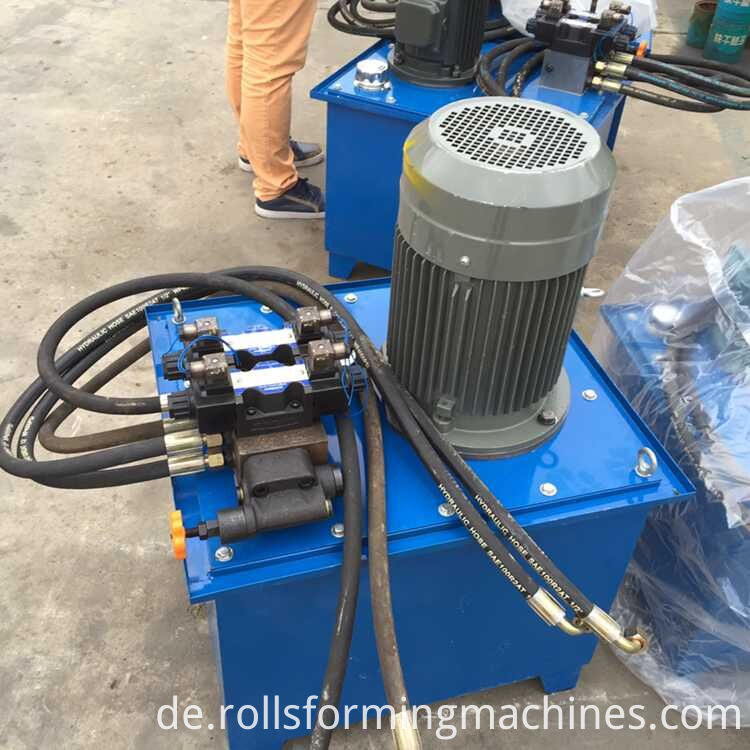

Power supply : hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job
Power: 4 kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1 sets of electromagnetism valves.

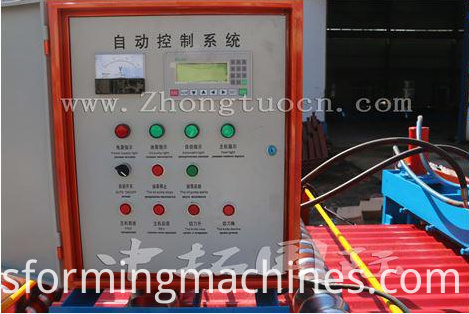

Electric Control System
1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.
If you need, we can change it other brand or little computer type for touching screen.
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
1. It adopts welded steel and supported roller to transmit the products.
2. 3 m/set with 2 sets

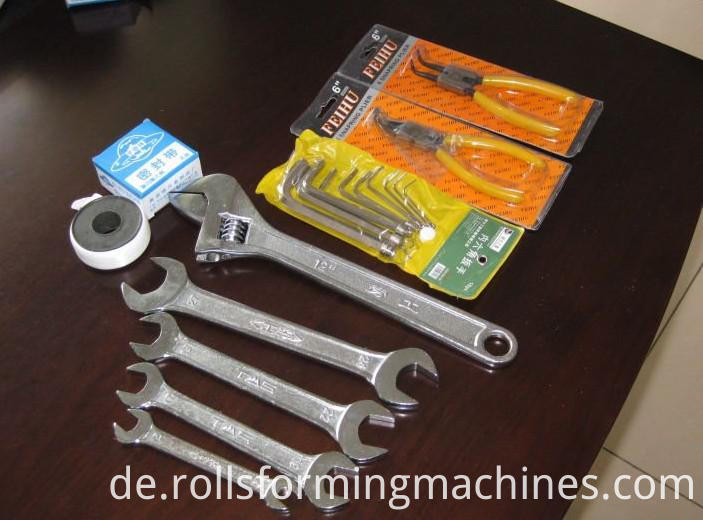

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;
3.Bolt spanner 1 pcs
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery:within 45 working days after receipt of deposit.
1. Two years guarantee, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary, one technician needed.
4. Training time: one week (contains the time of installation and adjustment)
Produktgruppe : Double-Layer Roll Umformmaschine
