C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes  Canales Maestras Forming Machine
C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes  Canales Maestras Forming Machine
C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes  Canales Maestras Forming Machine
C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes  Canales Maestras Forming Machine
C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes  Canales Maestras Forming Machine

C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes Canales Maestras Forming Machine

Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-009

    Shape: U Channel

    Perforated: Perforated

    Length: 5-12m

    Thickness: 0.3-0.8 Mm

    Material Of Rollers: GCr12MoV

    Diameter Of Shafts: Φ40mm

    Speed: 5-50m/min

    Main Power: 4kw

    Frame Thickness: 25mm

    Changing Size Methods: Completely Changing The Mold Linear System

    Forming Steps: 12 Rollers

    Weight: 2.6 Tons

    RAW MATERIAL: Galvanized

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 5-50m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE\ISO9001

Product Description

C U L Gypsum Wall Forming Machine Drywall Channel Forming Machine C U L Montantes Canales Maestras Forming Machine


Ceiling channel Requirements:

Montantes 48/35 - 70/40 - 90/40

Canales 48/28 - 70/28 - 90/28

Maestras 47/17/6

Thickness : +/- 0.5 to 0.7 mm

Length : +/- 3 to 6 m

Material : Galvanized DX51D +Z (EN 10143)

Speed : +/- 20 to 60 m per minute


C U L Gypsum Wall Forming Machine

Drawing profile for you reference :

Knauf Steel Frame Roll Forming Machine

Component for Light Weight Steel Frame Roll Forming Machine:

1. Decoiler one set

2. main roll forming machine one set

3. cutting and punching part

4. control box one set

5. hydraulic station

Details information for Light Weight Steel Frame Roll Forming Machine:

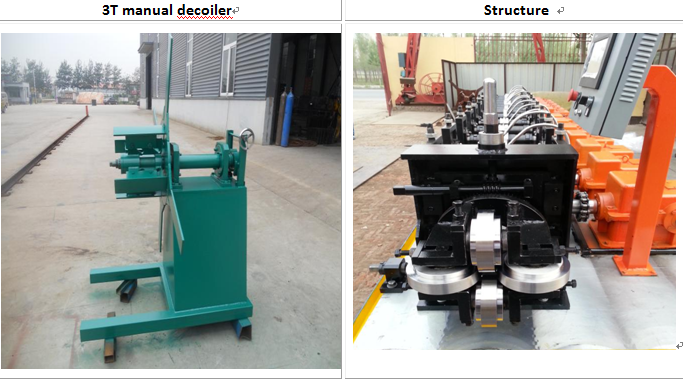

Decoiler


Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system

Loading capacity: 1.5T

Uncoiling width: 300mm

Inner diameter: 450-550mm

Furring Channel Machine

Main roll forming machine:

Feeding and leveling will level coil to make sure it is neat clean and straight.

Size: 3800х800х1400mm

Weight : 2.6 tons

Voltage:380V/50HZ 3Phase(as customer`s request)

Roller fixer : Guide column

Frame : middle plate welded Memorial arch frame type

Frame thickness:25mm

Speed: 5-50m/min

Drive mode: gear

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm

Number of rollers : 10rollers

Main power: 4kw

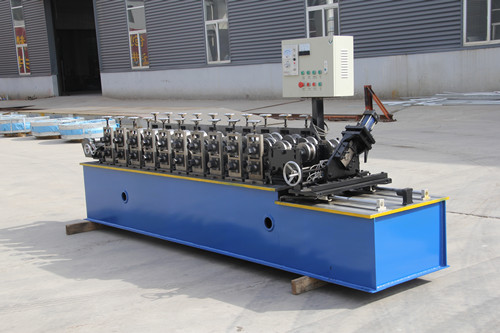

The machine picture is for your reference

Processing flow diagram of machine

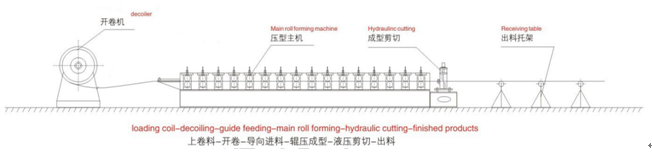

Manual Decoiler→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products

ceiing stud



Machine pictures for your reference

1.Technical parameters

Configurations

manual decoiler, guiding platform, main machine of roll forming, cutting device, electric motor, hydraulic station, Delta PLC control system, run out table

Material

Raw material

Galvanized

Thickness

0.3-0.8 mm

Manual

decoiler

Inner Diameter

450-550mm

Outer Diameter

max 1500mm

Max Coil width

500mm

Capacity

3T

Main Forming

Machine

Forming steps

12 rollers

Shaft diameter

40Cr steel with quenched treatment, precision machined, outer diameter: 40mm

Design type

Guide column

Machine frame

Memorial arch

roller material

bearing steel with quenched treatment

shaft material

45# steel with tempering

Work speed

20-60m/min

Transport

reduction gearbox transmission

Changing size methods

Completely changing the mold linear system

Structure

independent stand

Power of main machine

7.5 kw

Type of cutting and punching

Hydraulic

Cutting tolerance

±1mm

Blade and punching material

GCr12MoV quenching treatment 58-60°

Cutter quantity

1 set

Working pressure

20MPA

Cutting system

Hydraulic servo tracking cutting

the machine is with servo tracking cutting, the cutting knife can move automaticly with the speed of the machine. so that, the tracking cutting can keep same speed with the main forming speed, and cut the finished products without any stopping.

2. Automatic tracking cutting

No.

Name

Size and mode

number

note

1

base frame

100*100*6

1

2

Control station

1

Include switch button

3

Hydraulic station

4kw

1

4

Oil pump

63*80*80

1

5

Cooling device

35Hz

1

6

Sensor

Npu

2

7

Encoder

600

1

Omron

8

tachometric wheel

2

9

Servo motor

3.9kw

1

GSK

10

Mold

Mulfan1

4

11

Lead screw

Sfu4020-1230

1

Taiwan

12

Guide

HG35-2000

2

13

Slider

HGH35cA

4

14

Coupling

4


Control Device

PLC Control

Speed regulation control cabinet

PLC language

As required

Touch screen

Delta

Function

Automatic length and quantity measurement

Other

Spare part

Weight

About 8.0 ton

Dimension

6800*1800*1500 (mm) L x W x H

Main body color

As required

Voltage

380v, 50Hz,3 phase(or as required)

Spare cutting blade

One piece for one size

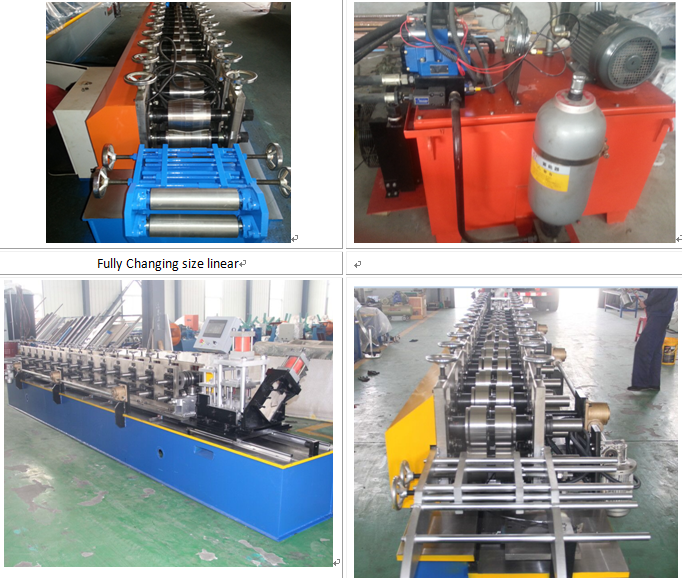

Machine pictures for your reference

1.Technical parameters



Shearing Machine:

Material of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Electic Control System:

Feature:

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Hydraulic Station:

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

ceiling stud roll forming machine

drywall stud roll forming machine

roll forming machine



Looking for ideal C U L Gypsum Wall Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Drywall Channel Forming Machine are quality guaranteed. We are China Origin Factory of C U L Montantes Canales Maestras Forming Machine. If you have any question, please feel free to contact us.
