Popular Design Metal Stud/Track Roll Forming Machine for US
Popular Design Metal Stud/Track Roll Forming Machine for US
Popular Design Metal Stud/Track Roll Forming Machine for US
Popular Design Metal Stud/Track Roll Forming Machine for US
Popular Design Metal Stud/Track Roll Forming Machine for US

Popular Design Metal Stud/Track Roll Forming Machine for US

Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-002

    Production Capacity: 10-25m/min

    Power(W): 8.5kw

    Weight: 8000KGS

    Material Thickness: 0.4mm- 0.6mm

    Function: Ceiling Light Keel Making Machine

Additional Info

    Productivity: 10-25m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO

    Port: Tianjin

Product Description

Popular Design Metal Stud/Track Roll Forming Machine for US offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other metal studs and tracks currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. No matter for running business or for big construction, this machine will be good helper for you.

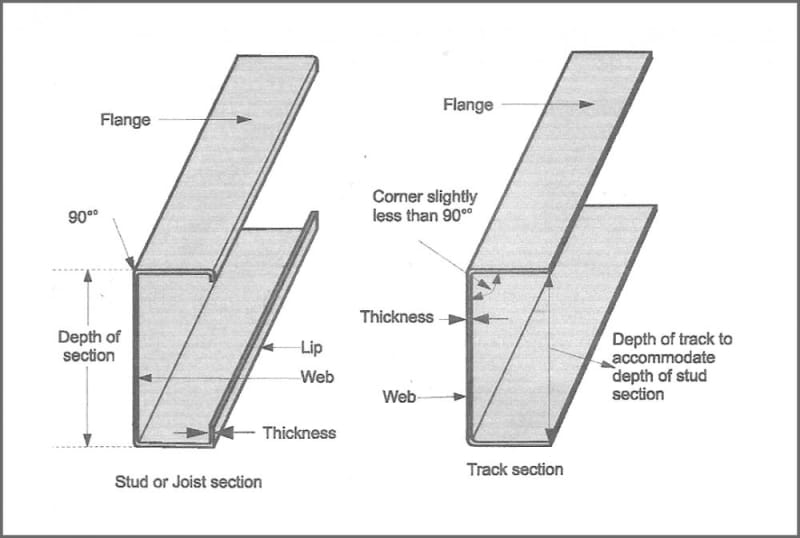

Steel Stud Image

Our machine supports material thickness from 0.4-4mm metal stud and track with the full engineering technicaldata/specification. Designed and pre-engineered by experienced truss specialists using only the very latest software. Normally our machine could make truss for Indian, Australia, Egypet and other countries. The shapes of the trusss are like furring hat shape, U shape, C shape, L shape and others.


Metal Stud Track Machine

Un-coiler System


Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 3T

Uncoiling width: 127-205 mm

Inner diameter: 450-550mm


Entry Beach


Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Main Roll Forming System


Feature: Ensure stability, precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission (the first and the last roller, the down roller should be attached with the upper one with the gear drive.), roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


Length of the main part: about 3000-800-1400

Weight of main part: 3 tons

Voltage : 380V/50HZ3Phase (as customer`s request)

Roller fixer : Guide column

Frame : middle plate welded

Memorial arch frame type

Frame thickness:25mm

Drive mode: gear

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm

Number of rollers : 10 rollers

Main power: 3kw

Cycloidal planetary gear speed reducer)


Shearing Mechanism


Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.


Material of blades: Gcr12MoV quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.


Hydraulic Station


It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Hydraulic motor Power: 3kw


Hydraulic oil: 46#

Volume: L

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.


Electric Control System


Feature:

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.


Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.


Products receiving tables
It adopts welded steel and supported roller to transmit the products.
Accessories

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs


Our service:

Payment Method: 30%T/T in advance and balance 70% after inspection confirmation.

Warranty 1. One year, and we will provide the Technical support for the whole life. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment)



Looking for ideal Metal Stud Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Track Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal stud track roll forming machine. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Drywall Profile Roll Forming Machine
