Zhongtuo Roll Forming Machinery Co., ltd

Top Roofing Ridge Cap Roll Forming Machine
Top Roofing Ridge Cap Roll Forming Machine
Top Roofing Ridge Cap Roll Forming Machine
Top Roofing Ridge Cap Roll Forming Machine

Top Roofing Ridge Cap Roll Forming Machine

Unit Price: USD 22500 - 7500 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-022

Additional Info

    Packaging: nude package

    Productivity: 30m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce,iso9001

Product Description

Top Roofing Ridge Cap Roll Forming Machine


The coil width of this Top Roofing Ridge Cap Roll Forming Machine is usually from 300-550mm. The thickness of Top Roofing Ridge Cap Forming Machine is between 0.25-08mm.It can continuous form the steel sheet according to customer`s requirement, automatically cut to length. This equipment has many advantages, just like light weight, high forming speed,low noise, stable transmission, easy operation, good look and so on.

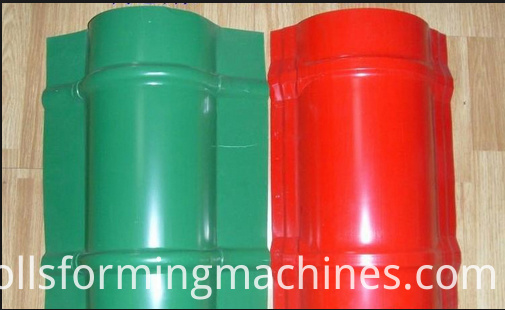

Drawings profile or finishes product pictures

Top Roofing Ridge Cap Forming Machine

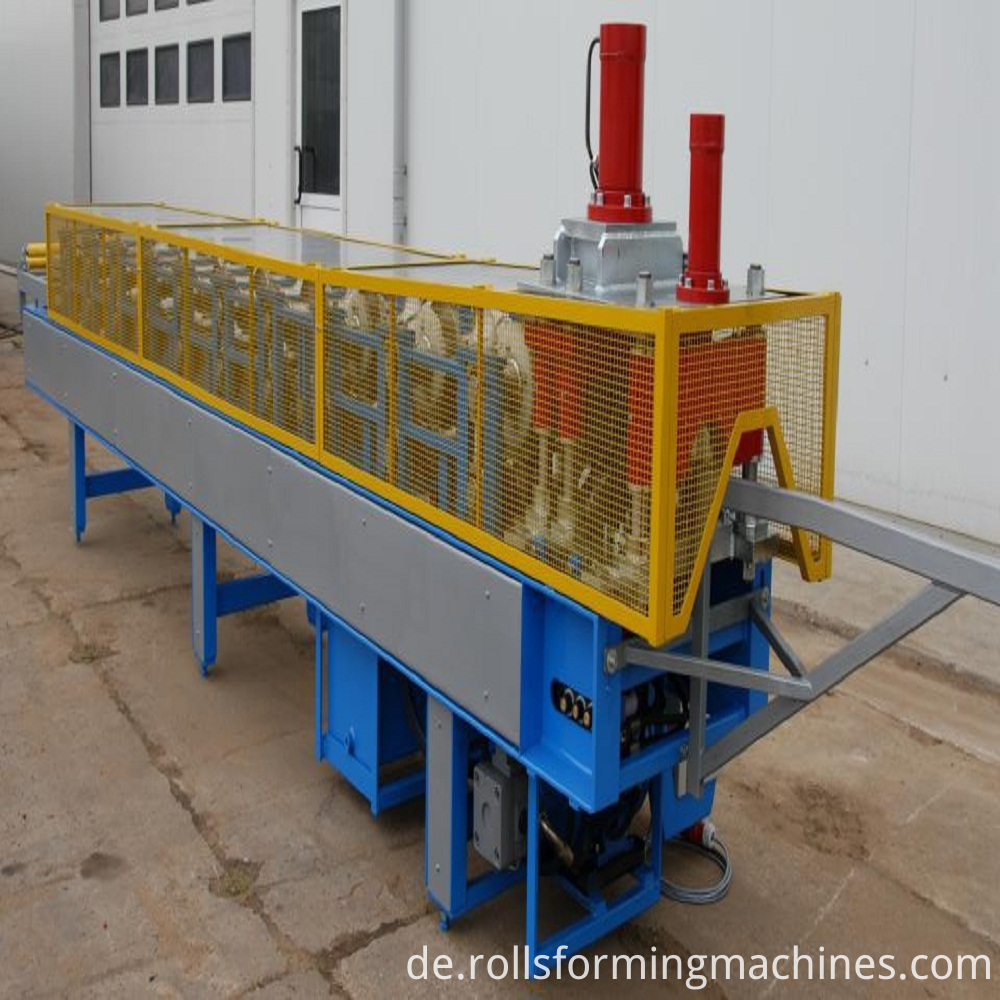

General overview of Top Roofing Ridge Cap Roll Forming Machine

03


Working flow of Top Roofing Ridge Cap Roll Forming Machine

Ridge Cap Roll Forming Machine 02


Uncoiler System of Top Roofing Ridge Cap Roll Forming Machine

Usage: It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity: 5T

Uncoiling width: 1000mm

Inner diameter: 450-550mm

03

Entry Beach of Top Roofing Ridge Cap Roll Forming Machine

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.It is set in the beginning of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.


Main Roll Forming System of Top Roofing Ridge Cap Roll Forming Machine

Length of the main part: about 6500*1300*1400

Weight of main part: 3.5 tons

Voltage: 380V/50HZ 3Phase or as customer's request

Roller fixer: middle plate

Frame: 350 H steel welded

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ60mm

Number of rollers: 11 rollers

Main power: 3.2kw

Top Roofing Ridge Cap Roll Forming Machine

Step-formed mechanism

Feature: it is used to make the step , the glazed tile's final formed

Material of mold: Cr12 quenched


Shearing Mechanism of Top Roofing Ridge Cap Roll Forming Machine

Feature: Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply: hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Top Roofing Ridge Cap Roll Forming Machine

Hydraulic Station of Top Roofing Ridge Cap Forming Machine

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power: 5.5kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. and two sets of electromagnetism valves.

Ridge Cap Making Machine 04

Electric Control System of Top Roofing Ridge Cap Forming Machine

Feature:

1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Panasonic

Top Roofing Ridge Cap Roll Forming Machine

Looking for ideal Top Roofing Ridge Cap Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Top Roofing Ridge Cap Forming Machine are quality guaranteed. We are China Origin Factory of Standard Quality Ridge Cap Making Machine. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Glazed Tile and Ridge Cap Roll Forming
