Zhongtuo Roll Forming Machinery Co., ltd

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine

Roofing Aluminum Sheets Machine

Unit Price: USD 18000 - 8000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-006-264

    Type: Workbench

    Handle Material: Plastic

    Material Width: 800-1500mm

    Formed Width: 700-1250mm

    Lanugage System: Chinese ,English ,Russian

    Cutting Type: Hydraulic Cutting

    Step Height: 10-30mm

    Material Thickness: 0.3-1.0mm

    Working Speed: 5-12m/min

    Voltage: 380V/480V

    Main Power: 3.5-7.5kw

    Control System: PLC With Touch Screen

Additional Info

    Packaging: As customer's need

    Productivity: 8-15 m/min

    Brand: Zhomgtuo

    Transportation: Ocean,Land

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE/ISO/SGS/IAF/CNAS.

Product Description

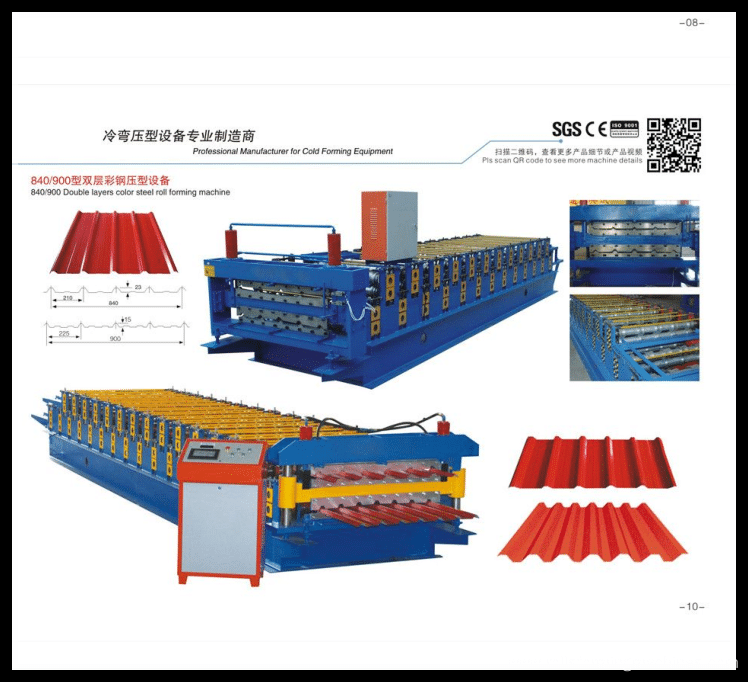

Roofing Aluminum Sheets Machine
Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Uncoiler System:
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:1500mm
Inner diameter: 450-550mm

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Main Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage : 480V/60HZ/3-Phase
Roller fixer : middle plate
Frame : 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers : 13 rollers
Main power:5.5kw

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power:3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Electric Control System:
1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Panasonic.

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.

Roofing Aluminum Sheets Machine
Roofing Aluminum Sheets Machine Company Information:
Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
Roofing Aluminum Sheets Machine

Looking for ideal Sheets Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Aluminum Sheets Machine are quality guaranteed. We are China Origin Factory of Roofing Aluminum Sheets Machine. If you have any question, please feel free to contact us.
