rockwool sandwich board production line
Rockwool sandwich board production line including unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

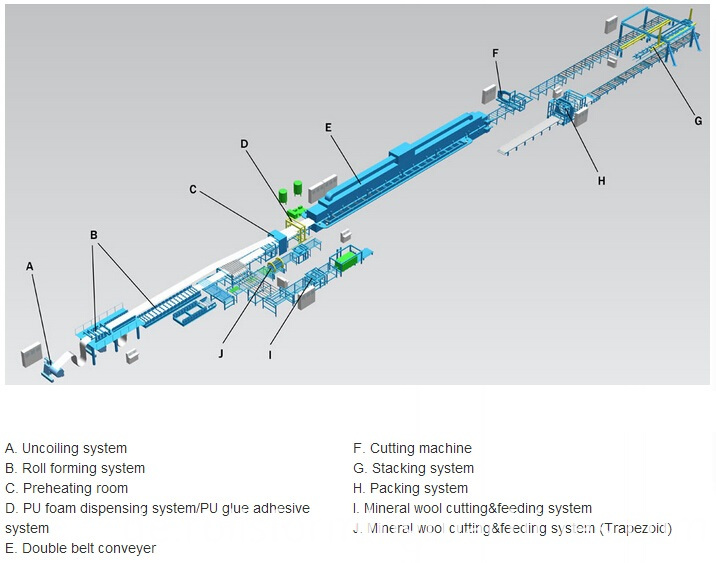

rockwool sandwich board production line production Process:
Details of rockwool sandwich board production line :
Raw material
- Material:Colored steel
- Coil thickness:0.4~0.6mm
- Coil weight:Max 5T
- Coil width: Max 1250mm
- Coil inner diameter:ø508mm
- Coil outer diameter:ø1100mm
Un-coiler
- Bear weight:5T
- Mandrel expansion :465 – 515 mm
Laminating machine
- PVC coil outer diameter:300mm
- PVC coil inner diameter:70-82mm
- Maximum coil width:1250mm
Beading Equipment
- Speed:10m/min
- Power:2.2kw or according to the profile
- Diameter of roller:according to the profile
- Power supply:motor
- Material of roller:l 40Cr quenched and tempered, chrome
Roll forming
- Frame:Cantilever structure
- Speed:10m/min
- Power:4kw up, 7.5kw down
- Shaft diameter:50 mm
- Distance roller head:350mm
- Rollers: 11 up, 18 down
Rock wool delivery device
- Motor Power:2*1.5Kw
- Speed:8m/min
- The maximum transport width:1200mm
- Dispensing Systems
- Effective volume:150L
- Unit motor power:10KW
Roll Forming Machine
- Length:10mm
- Width:1200mm
- Lifting speed:200mm/min
- Drive motor power:2.2Kw*4
- Lifting motor power:1.5Kw*4
- Speed:10 m/min

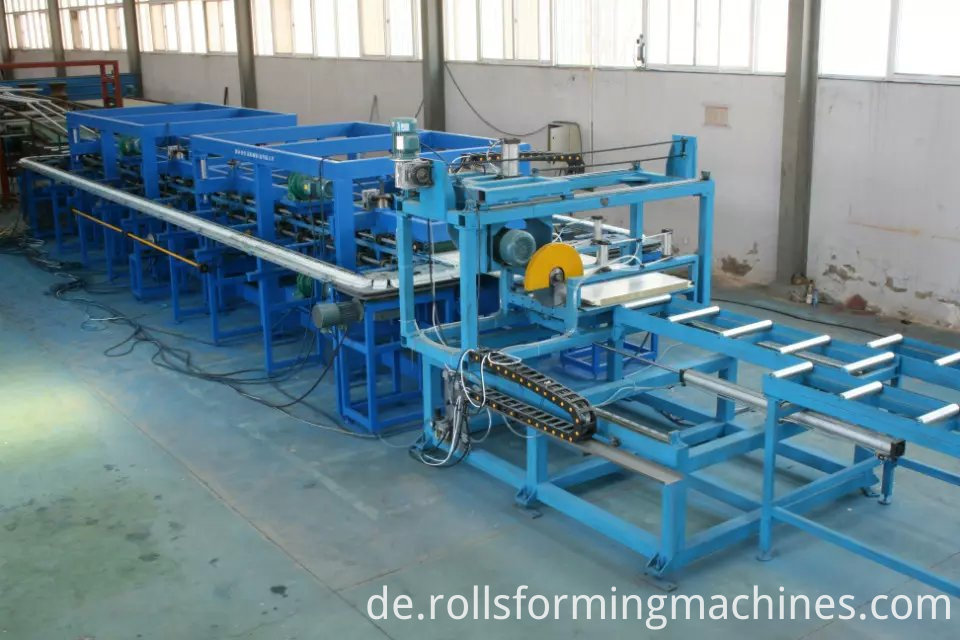

Cutting part
- Cutting motor power:7.5Kw
- Lateral movement motor power:1.1 KW
- Traversing speed:150 mm/s
- Cutting width:1300 mm
- Cutting error:±2mm
Looking for ideal Rockwool
Sandwich Panel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rockwool Sandwich Board Making Machine are quality guaranteed. We are China Origin Factory of Sandwich Board Roll Forming Machine. If you have any question, please feel free to contact us.
