Zhongtuo Roll Forming Machinery Co., ltd

Rockwool Sandwich Panel Roll Forming Machine With
Rockwool Sandwich Panel Roll Forming Machine With
Rockwool Sandwich Panel Roll Forming Machine With
Rockwool Sandwich Panel Roll Forming Machine With

Rockwool Sandwich Panel Roll Forming Machine With

Unit Price: USD 250000 - 450000 / Set/Sets
Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 90 Days

Contact Now

Basic Info

    Model No.: ZT-005-14

Additional Info

    Packaging: as customer requirem

    Productivity: 2-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 10set/month

    Certificate: CE, ISO9001

Product Description

Rockwool Sandwich Panel Roll Forming Machine With High Quality

Rockwool Sandwich Panel Roll Forming Machine with high quality including unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

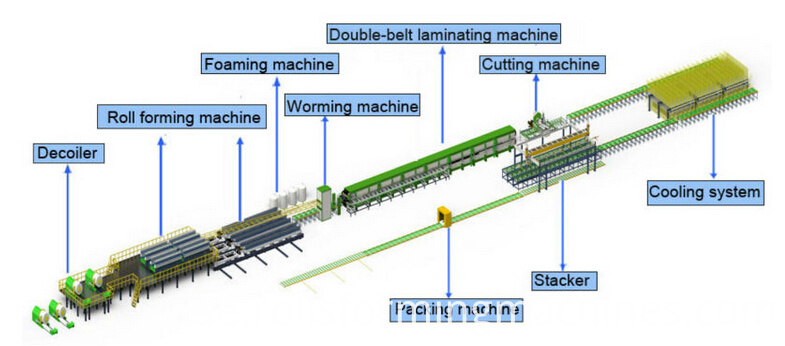

rockwool sandwich panel roll forming machine with high quality production Process:


(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming \


--Rock wool delivery--Glue--Sealing side foam--laminating machine with Foam,Solidify,Roll forming--Cutting --Run-out table


(Lower part)Uncoiler ---Cutting →Film→Beading→Roll forming /

Sandwich Panel machine


Parameters of Sandwich Panel Machine :

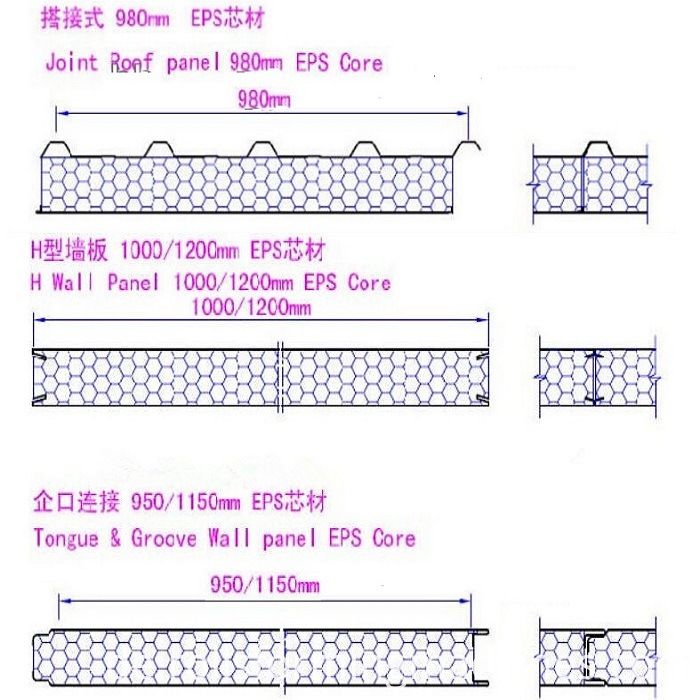

  • PU sandwich panel


Cutting length:Min 3m, max 15mm

PU sandwich panel width:800-1150mm(design by customer)

PU sandwich panel thickness:50-100mm

PU foam materials:Polyether and isocyanates

PU foam density:30-45kg/m3


  • Raw material


Max width of coil:1250mm

Max weight of coil:10T

Diameter of coil:508-610

The thickness of coil:0.5-0.8mm

Hardness:235MPa


  • Main machine


speed:5-8m/min

The length of production line:80m

Working height:1200mm

Foam casting working pressure:150-200 bar

the effective length of Double-belt:24mm

Control system:Imported PLC

Total power:90KW

Voltage:380V/50HZ

Control voltage:24V/110V220V

Air pressure:0.7Mpa

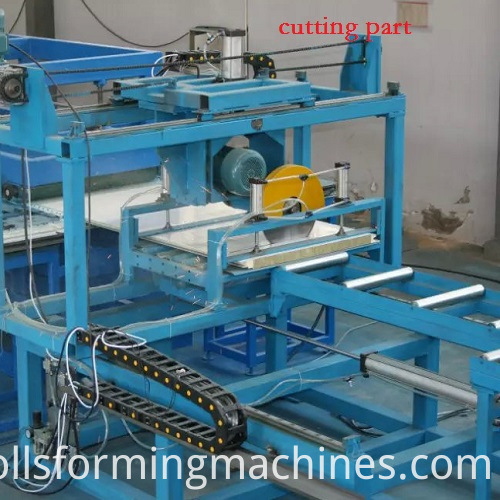

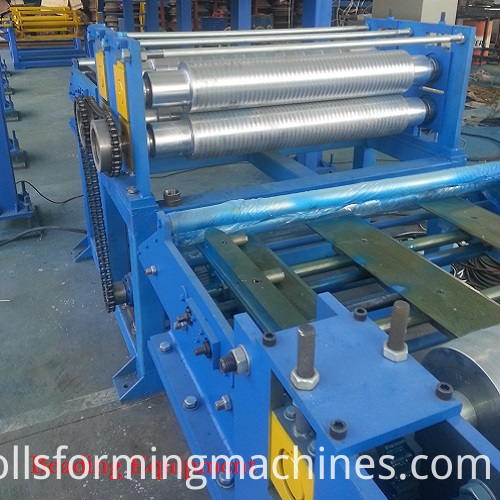

Details of andwich Roof Roll Forming Machine :

Sandwich Panel machine


Sandwich Roof Roll Forming machine

Sandwich Panel machine




Looking for ideal Rockwool Sandwich Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rockwool Sandwich Panel Making Machine are quality guaranteed. We are China Origin Factory of High Quality Sandwich Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Sandwich Panel Roll Forming Machine
