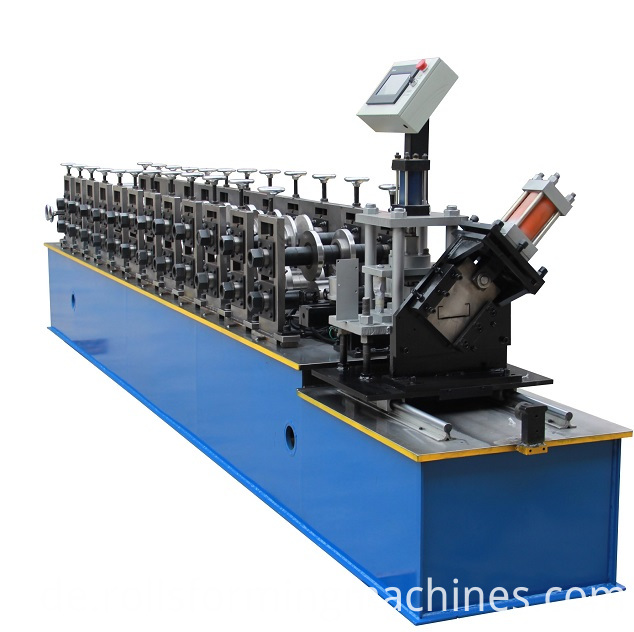

50-75-100 Drywall Steel Frame Making Machine
Cater to the market requirement, Zhongtuo 50-75-100 Drywall Steel Frame Making Machine was developed. Different with other roll forming machines, Zhongtuo Drywall Steel Frame Making Machine supports both U shape and C shape metal track and stud making meanwhile sizes are options. So we call it as all-in-one combined Drywall Steel Fram Roll Forming Machine.
Features of 50-75-100 Drywall Steel Frame Making Machine
1. One machine either could be used to make U stud in various sizes
2. Able to make C stud in various sizes.
3. For making C and U without changing rollers.
4. Easy to adjust sizes just by sizing in computer.
5. Machine is controlled by PLC station.

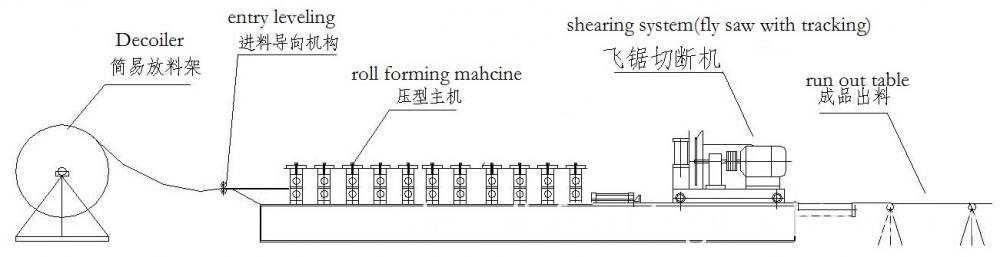

Main elements of Drywall U Channel Roll Forming Machine
1.Decoiler
2.main roll forming machine
3.punching maching(as customer's need)
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control
6.Drywall keel C stud Roll Forming Machine Counter
7.hydraulic station
8. Drywall U Channel Roll Forming Machine receiving table
Some main parameters of Drywall Steel Frame Machine
1.Working efficiency:25m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.5-1.2mm
5.Width of material: as you need
6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

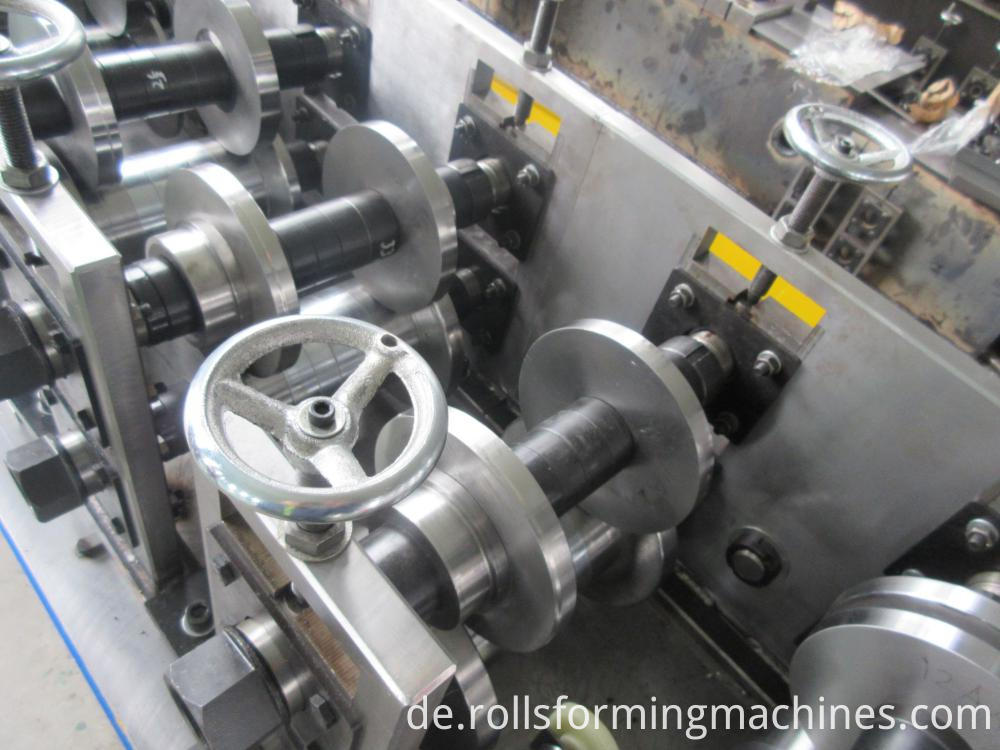

7.Number of rollers: 10 rollers
8.Drywall C stud Making Machine Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12. Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Drywall C stud Making Machine Frame: 25mm

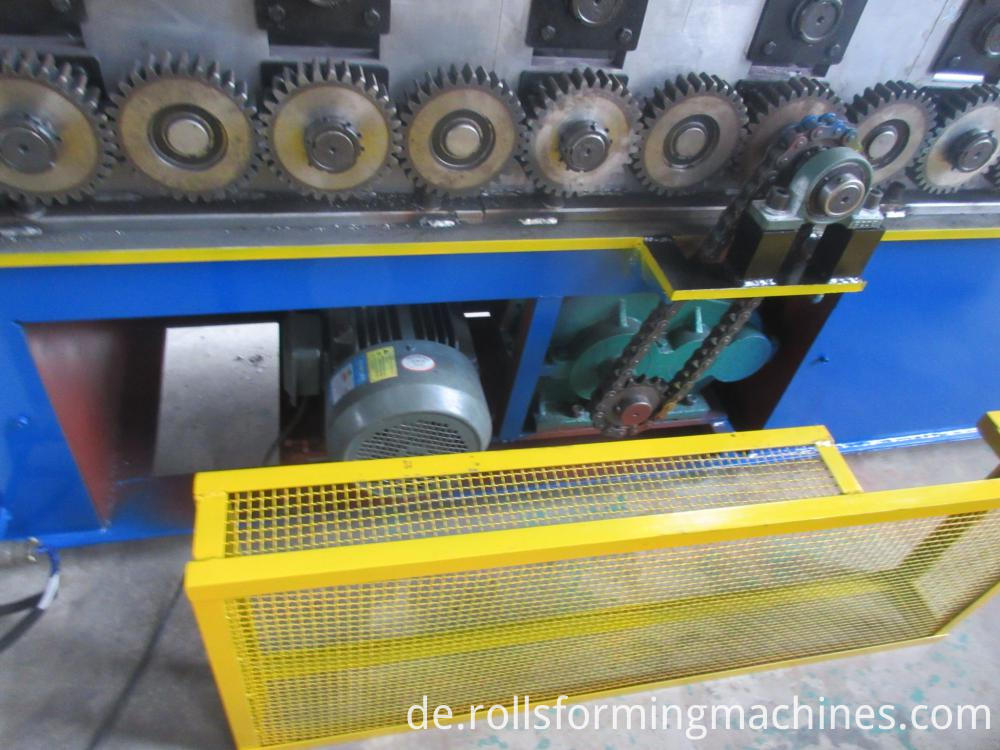

18.Drive : gear, chain or case of different speeds(as customer`s demand)
19.Drywall C stud Making Machine Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Drywall C stud Making Machine Control system: Delta of Taiwan.
22.Automatic Drywall C stud Forming Machine color: yellow or blue
23.Lenth: 3000*800*1400mm
Looking for ideal 50-75-100 Drywall Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Drywall Steel Frame Machine are quality guaranteed. We are China Origin Factory of Drywall Steel Frame Making Machine. If you have any question, please feel free to contact us.
