Zhongtuo Roll Forming Machinery Co., ltd

2016 new wall panel roofing sheet 840 steel sheet roll formnig machine

2016 new wall panel roofing sheet 840 steel sheet roll formnig machine

Unit Price: USD 9800 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union,D/A
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-009

    Material Of Shafts: 45# Steel

    Frame: 350 H Steel Welded

    Drive Mode: Chain

    Number Of Rollers: 13 Rollers

    Diameter Of Shafts: Φ80mm

    Main Power: 5.5kw

    Material Of Blades: Cr12 Quenched

    Roller Fixer: Middle Plate

    Delivery Time: 30 Working Days

    Material Of Rollers: 45# Steel

Additional Info

    Packaging: As customer's need

    Productivity: 8-12 m/minute

    Brand: Zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE/ISO/SGS/IAF/CNAS.

Product Description

840 Roof tile machine Sheet steel roof machine Cut system roof tile machine


The 840 Roof tile machine Sheet steel roof machine Cut system roof tile machine is popular in the roofing sheet, the sheet made from the machine can be used as the wall panel and the roof panel, and this machine is with good cost, but can be used as long as 10 years and long.

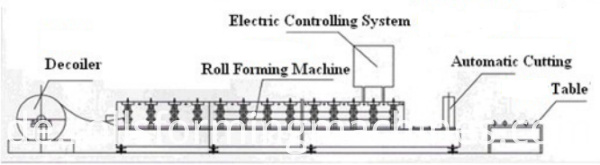

The machine is include by the manul decoiler, the levveling system and the roll forming mmachine system and the cutting system and the receiving table.

840 roof machine,roof making machine,zinc roof machine

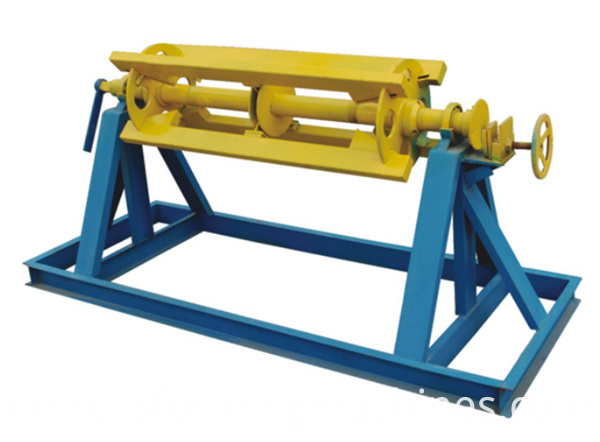

840 roof machine,roof making machine,zinc roof machine Uncoiler System:

Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:1500mm
Inner diameter: 450-550mm


840 roof machine,roof making machine,zinc roof machine

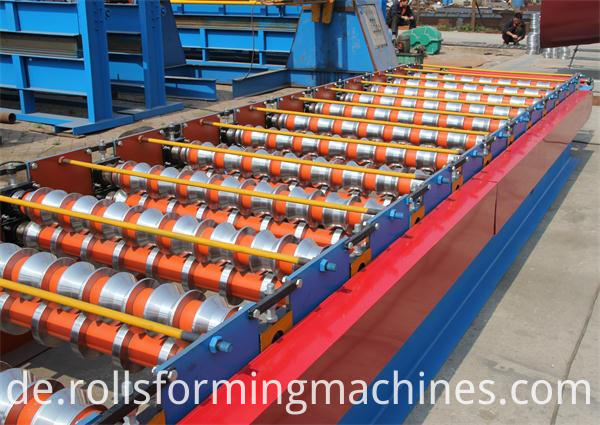

840 roof machine,roof making machine,zinc roof machine Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage : 480V/60HZ/3-Phase
Roller fixer : middle plate
Frame : 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers : 13 rollers
Main power:5.5kw


840 roof machine,roof making machine,zinc roof machine

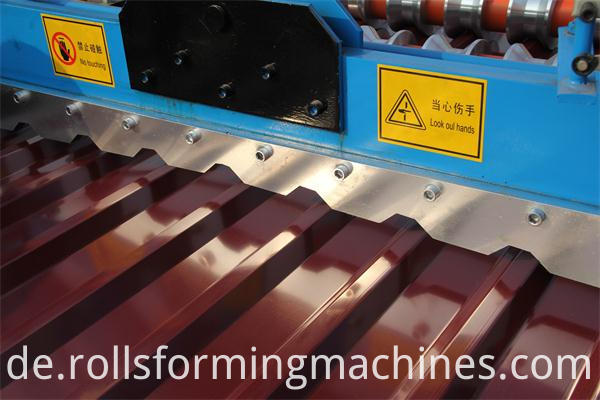

840 roof machine,roof making machine,zinc roof machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

840 roof machine,roof making machine,zinc roof machine

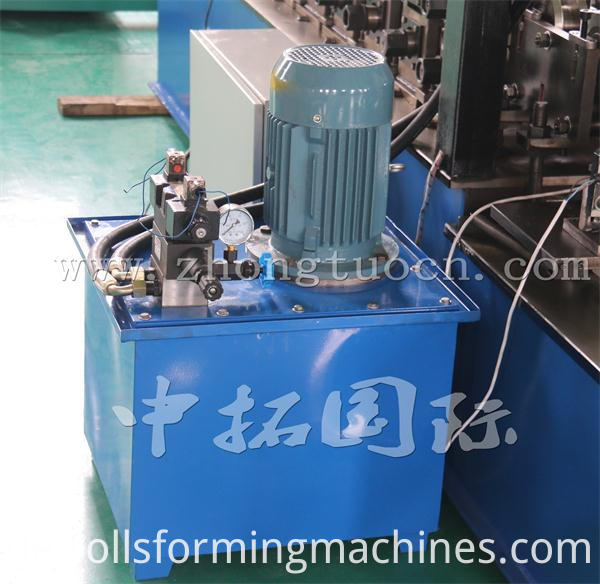

840 roof machine,roof making machine,zinc roof machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power:3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

840 roof machine,roof making machine,zinc roof machine
840 roof machine,roof making machine,zinc roof machine Electric Control System:
1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Panasonic.

840 roof machine,roof making machine,zinc roof machine
840 roof machine,roof making machine,zinc roof machine Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
840 roof machine,roof making machine,zinc roof machine Company Information:
Cangzhou zhongtuo cold roll forming manufactury co., ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
840 roof machine,roof making machine,zinc roof machine

Looking for ideal 840 Steel Sheet Roll Formnig Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wall Panel Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roofing Sheet Roll Forming Machine. If you have any question, please feel free to contact us.
